GeoRelays

A small toolkit to discover Nostr relays and estimate their locations. It can also optionally filter for BitChat-capable relays (kind 20000) before geolocating.

How the georelays dataset is produced

The repository contains three scripts that form a simple pipeline:

Discover functioning relays (Python)

Script: nostr_relay_discovery.py
What it does:
- Starts from a seed relay URL and connects to it via WebSocket (ws/wss).
- Breadth‑first searches follow lists (kind 3) and relay lists (kind 10002), extracting relay URLs from event tags (r/p tags).
- Tests each candidate relay for basic Nostr protocol responsiveness by issuing a REQ and evaluating responses (EVENT/EOSE/NOTICE).
- Processes relays in concurrent batches and periodically saves progress to relay_discovery_results.json.
Output: relay_discovery_results.json with:
- functioning_relays (array of ws/wss relay URLs)
- discovery settings, progress, and statistics

Filter for BitChat relays (kind 20000)

Script: filter_bitchat_relays.sh
What it does:
- Reads relay URLs from stdin and, in parallel, checks whether each relay:
  - can return kind 20000 events (read), and
  - accepts posting a kind 20000 event (write).
- Uses the nak CLI to query (nak req -k 20000) and post (nak event -k 20000 ...).
Output: writes to stdout the subset of input relay URLs that pass both checks. You can redirect this to a file, e.g., bitchat_relays.txt.

Geolocate relays (Bash)

Script: relays_geo_lookup.sh <output.csv>
What it does:
- Downloads the DB‑IP city IPv4 ranges (dbip-city-ipv4-num.csv.gz), loads it into memory, and uses a binary search to map IPv4s to latitude/longitude.
- Reads hostnames from stdin, resolves them via dig to A records, and looks up the first IPv4 with available coordinates.
Input: hostnames only (e.g., relay.example.com), not full ws/wss URLs.
Output: writes a CSV with header Relay URL,Latitude,Longitude to the file you specify.

Note: The geolocation step is IPv4‑only (the DB‑IP file used here is IPv4). IPv6‑only relays will be skipped.

Tips and caveats

The discovery step uses timeouts and concurrent batches; tune --batch-size, --timeout, and --max-depth for your environment.
The BitChat filter posts a test kind 20000 event. Ensure nak is configured to publish (e.g., via its config or environment variables as per nak docs).
Geolocation is an estimate based on DB‑IP and only for IPv4. Accuracy varies and may reflect the ISP/hosting POP rather than precise server location.
relays_geo_lookup.sh stops at the first IPv4 for which DB‑IP provides coordinates. Some hostnames resolve to multiple IPs.

GitHub Actions automation

This repository includes a GitHub Actions workflow under .github/workflows/ that automates the end‑to‑end process:

Checks out the repository
Sets up Python and system dependencies
Runs nostr_relay_discovery.py to produce relay_discovery_results.json
Extracts the functioning relays with jq
Runs filter_bitchat_relays.sh
Runs relays_geo_lookup.sh to generate nostr_relays.csv
Commits the updated artifacts back to the repository

To change the schedule, seed relay, or enable BitChat filtering in CI, edit the workflow file in .github/workflows/.

Relay Count History

These charts show the number of Nostr relay entries in our dataset over time:

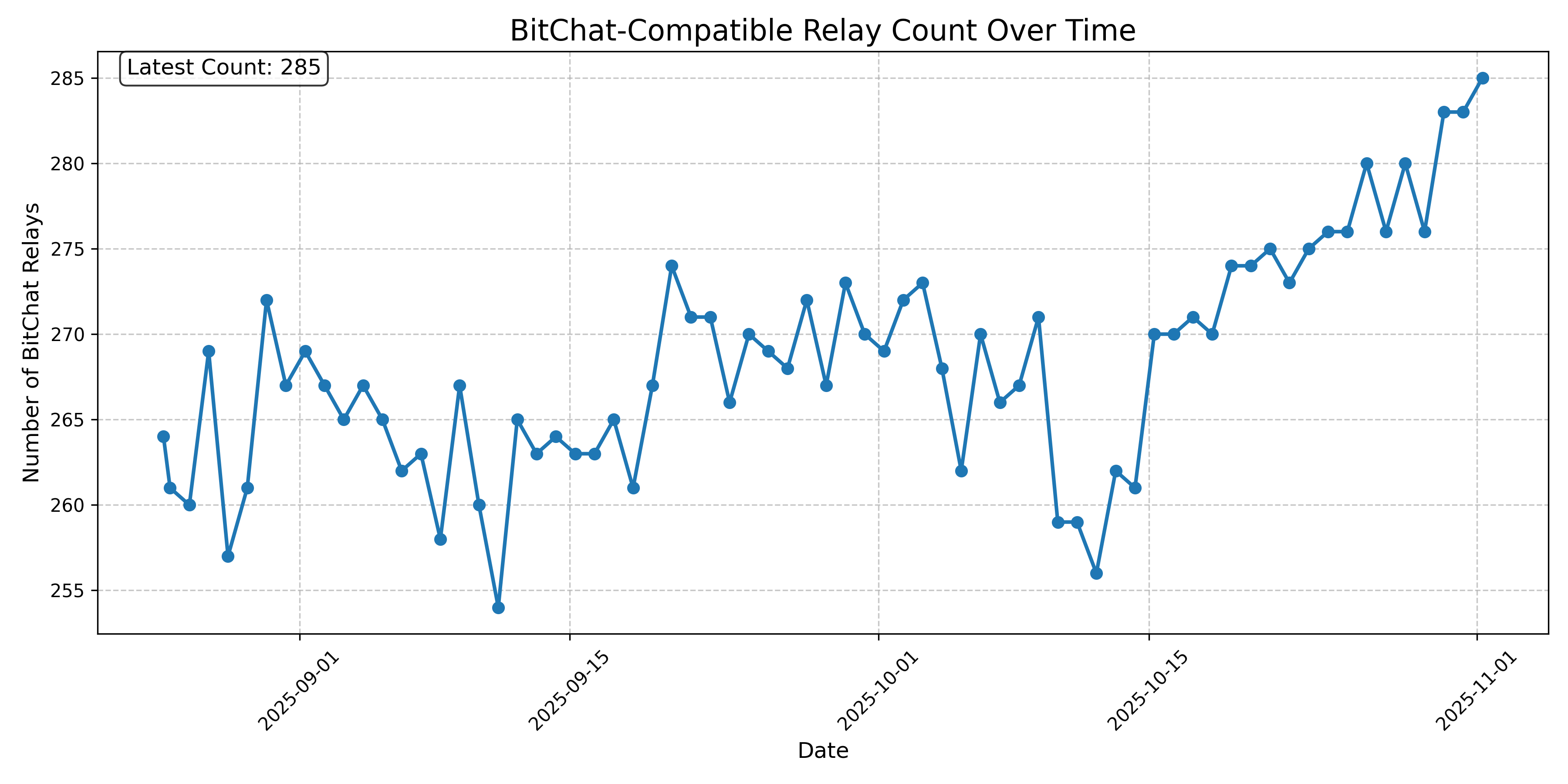

BitChat-Compatible Relays

The chart below shows relays that support BitChat events (kind 20000):

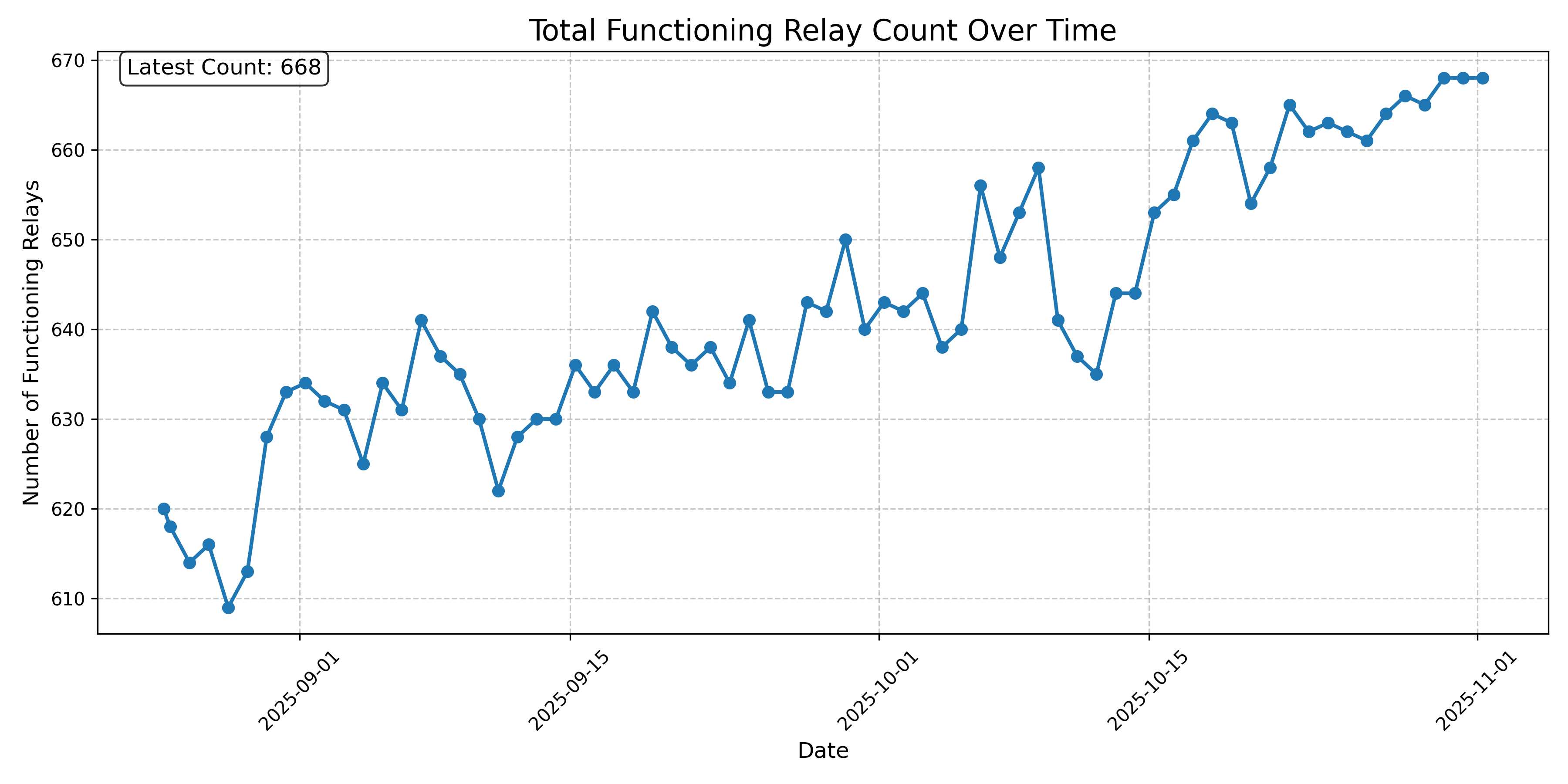

Total Functioning Relays

The chart below shows all functioning relays discovered during the relay discovery process:

The charts are automatically updated daily to reflect changes in the number of relays and show approximately 70 days of history.

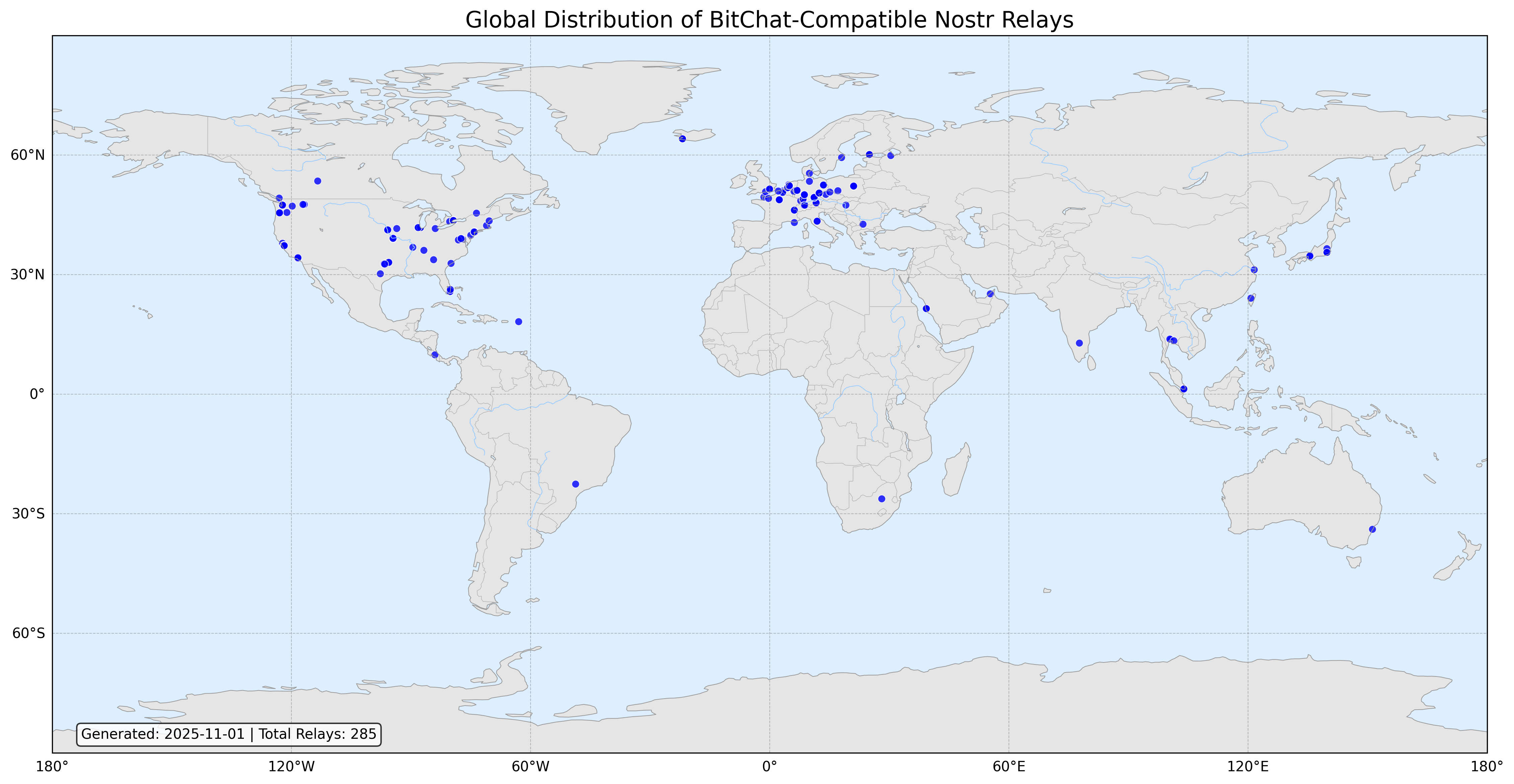

Global Distribution of Relays

The map below shows the geographical distribution of BitChat-compatible Nostr relays around the world:

Additional visualizations available in this repository:

Heatmap: A density visualization showing relay concentration areas (assets/relay_locations_heatmap.png)
Interactive Map: An HTML-based interactive map that allows zooming and clicking on individual relays (assets/relay_locations_interactive.html) - download and open in a browser to explore

All maps are automatically updated alongside the relay data.

Attribution

nostr_relays.csv and relay_discovery_results.json use a database curated by DB‑IP, available at https://www.db-ip.com.
